Quick Coupler Sockets

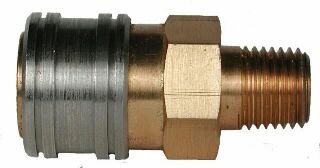

QUICK COUPLER SOCKET 1/4-NPT MALE PIPE THREAD

Quick Coupler QCSM 250-303

This quick coupler socket is of high quality being made from brass & 303 stainless steel and has high corrosion resistance. Used mainly in guns as a lance quick disconnect.




Part # QCSM-250-303

Price $10.25

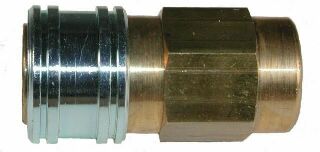

QUICK COUPLER SOCKET 1/4-NPT FEMALE PIPE THREAD WITH THREAD PROTECTOR FOR USE ON ALUMINUM LANCES

Quick Coupler QCSF 250-303

This quick coupler socket is of high quality being made with a brass body & 303 stainless steel sleeve. It has high corrosion resistance and is used mainly on the lance end for nozzles. It has a counter bored end so that the lance screws in past the thread end and protects the lance from breaking at the thread.




Part # QCSF-250-303

Price $11.25



QUICK COUPLER SOCKET 3/8 -NPT MALE PIPE THREAD

(SIMPSON HP STYLE)

Quick Coupler QCSM 375-303

This quick coupler socket is the industry standard. It is of high quality being made with a brass body & 303 stainless steel sleeve and has high corrosion resistance. Used on unloader valves and hoses.




Part # QCSM-375-303

Price $11.25

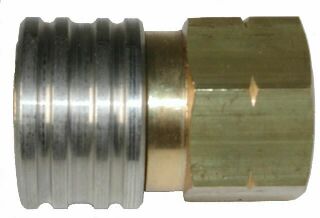

QUICK COUPLER SOCKET 3/8-NPT FEMALE PIPE THREAD

(SIMPSON HP STYLE)

Quick Coupler QCSF 375-303

This quick coupler socket is the industry standard. It is of high quality being made with a brass body & 303 stainless steel sleeve and has high corrosion resistance. Used on unloader valves and hoses.




Part # QCSF-375-303

Price $11.25

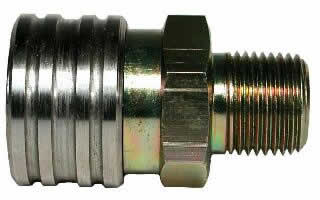

QUICK COUPLER SOCKET 3/8-NPT MALE PIPE THREAD

(SIMPSON VHP STYLE)

This VHP-style quick coupler socket is designed for use with machines that have higher pressures (3200 PSI to 4000 PSI). The balls are larger than the standard coupler sockets. This larger ball seating in the mating radius of the VHP plug resists peening of the plug. This peening occurs when the gun trigger is pulled and the pressure forces the plug against the coupler balls. This peening is what destroys the coupler plug. This socket is of the highest quality made with the body being machined from brass & the sleeve from 316 stainless steel. It is highly corrosive resistant.
The o-ring is made of urethane to withstand higher pressures.






Part # QCSM-VHP-316

Price $12.50

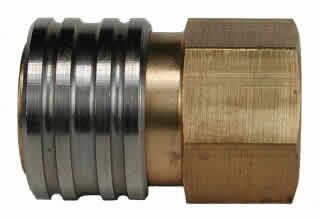

QUICK COUPLER SOCKET 3/8-NPT FEMALE PIPE THREAD

(SIMPSON VHP STYLE)

This VHP-style quick coupler socket is designed for use with machines that have higher pressures ( 3200 PSI TO 4000 PSI ) The balls are larger than the standard coupler sockets. This larger ball seating in the mating radius of the VHP plug resists peening of the plug. This peening occurs when the gun trigger is pulled and the pressure forces the plug against the coupler balls. This peening is what destroys the coupler plug. This socket is of the highest quality made with the body being machined from brass & the sleeve from 316 stainless steel. It is highly corrosive resistant.
The o-ring is made of urethane to withstand higher pressures.




Part # QCSF-VHP-316

Price $12.50

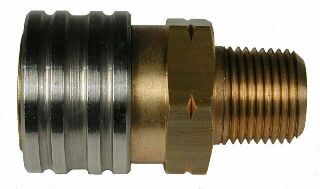

QUICK COUPLER SOCKET 3/8-NPT MALE PIPE THREAD

(SIMPSON XHP STYLE)

These coupler sockets were installed onto 5000 PSI hoses. The reason being so that hoses of lower pressure ratings could not accidentally be coupled to a 5000 PSI machine. The plug can be identified by a V groove cut into the hex portion of the plug & socket. The balls are larger than the standard coupler sockets. This larger ball seating in the mating radius of the XHP plug resists peening of the plug. This peening occurs when the gun trigger is pulled and the pressure forces the plug against the coupler balls. This peening is what destroys the coupler plug. This socket is of the highest quality made with the body being machined from brass & the sleeve from 316 stainless steel. It is highly corrosive resistant.

The o-ring is made of Viton to withstand the higher pressures.






Part # QCSM-XHP-316

Price $14.50



QUICK COUPLER SOCKET 3/8-NPT FEMALE PIPE THREAD

(SIMPSON XHP STYLE)

These coupler sockets were installed onto 5000 PSI hoses. The reason being so that hoses of lower pressure ratings could not accidentally be coupled to a 5000 PSI machine. The plug can be identified by a V groove cut into the hex portion of the plug & socket. The balls are larger than the standard coupler sockets. This larger ball seating in the mating radius of the XHP plug resists peening of the plug. This peening occurs when the gun trigger is pulled and the pressure forces the plug against the coupler balls. This peening is what destroys the coupler plug. This socket is of the highest quality made with the body being machined from brass & the sleeve from 316 stainless steel. It is highly corrosive resistant.

The o-ring is made of Viton to withstand the higher pressures.




Part # QCSF-XHP-316

Price $14.50
