HOSE REELS
TITAN
HOSE REELS
U-CHANNEL
FRAME MANUAL REWIND
 |

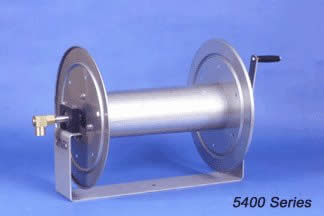

5400
Series : Stainless
Steel
This
economical stainless steel hose reel has 1/2" NPT inlet
and outlet, Frame is 7 gage Stainless Steel and includes type
304 stainless steel disks, fluid manifold, crank, tie-rods,
and hardware.
The
swivel is brass.
The
spool is heavy duty PVC.
Bearing
holder, handle, and drag (for tensioning) are molded resin.
Optional 7084 pin-lock kit is available for 5400 series.
4800
Series : Aluminum
- One piece 3/16" thick
aluminum frame.
- Brass swivel
- Adjustable molded resin
drag.
- Stainless steel disks.
- PVC spool.
- Carbon steel mainfold.
|
MANUAL
HOSE REELS PRICES
FOR
U-CHANNEL MANUAL REWIND HOSE REELS
| MODEL
|
FRAME
|
FRAME
|
SWIVEL
|
WEIGHT
|
| NUMBER
|
MAT'L
|
TYPE
|
INCLUDED
|
LBS.
|
| 4806H |
Aluminum
|
U-Channel
|
1/2"
Brass |
27 |
| 4812 |
Aluminum
|
U-Channel
|
1/2"
Brass |
29 OS |
| 4812H |
Aluminum
|
U-Channel
|
1/2"
Super |
29 OS |
| 4818H |
Aluminum
|
U-Channel
|
1/2"
Brass |
34 OS |
| 5406 |
SS |
U-Channel
|
1/2"
Brass |
28 |
| 5412 |
SS |
U-Channel
|
1/2"
Brass |
33 OS |
| 5418 |
SS |
U-Channel
|
1/2"
Brass |
38 OS |
| 7084 |
SS
PIN-LOCK FOR ABOVE 8 MODELS |
MANUAL
HOSE REELS PRICES
FOR
FULL FRAME MANUAL REWIND HOSE REELS
WITH
PIN LOCK
 |
4300
Series :Aluminum
- One piece 3/16" thick
aluminum frame.
- Adjustable molded resin
drag.
- Stainless steel disks.
- PVC spool.
- Carbon steel mainfold.
4000
Series :Large Aluminum
- One piece 3/16" thick
aluminum frame.
- Adjustable molded resin
drag.
- Stainless steel disks.
- PVC spool.
- Carbon steel mainfold.
|
 |

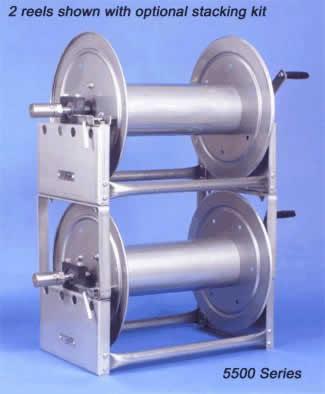

5500
Series : Stainless Steel
This
full frame stainless steel hose reel has 1/2" NPT inlet and
outlet, and includes type 304 stainless steel disks, frame,
fluid manifold, pin-lock, crank,
tie-rods, and hardware. Swivel is bearing supported nickel
plated steel. Spool is heavy duty PVC. Bearing holder, handle,
and drag (for tensioning) are molded resin. |
| MODEL
|
FRAME
|
FRAME
|
SWIVEL
|
WEIGHT
|
| NUMBER
|
MAT'L
|
TYPE
|
INCLUDED
|
LBS.
|
| 4306H |
Aluminum
|
FULL |
1/2"
Brass |
32 |
| 4312H |
Aluminum
|
FULL |
1/2"
Super |
34 OS |
| 4318H |
Aluminum
|
FULL |
1/2"
Super |
37 OS |
| 4322H |
Aluminum
|
FULL |
1/2"
Brass |
39 OS |
| 4328H |
Aluminum
|
FULL |
1/2"
Brass |
41 OS |
| 5506 |
SS |
FULL |
1/2"
Super |
34 |
| 5512 |
SS |
FULL |
1/2"
Super |
36 OS |
| 5518 |
SS |
FULL |
1/2"
Super |
38 OS |
| 5522 |
SS |
FULL |
1/2"
Super |
43 OS |
| 5528 |
SS |
FULL |
1/2"
Super |
45 OS |
| 4000-6 |
Aluminum
|
FULL |
1" Super
|
40 OS |
| 4012-6 |
Aluminum
|
FULL |
1" Super
|
41 OS |
| 4018-6 |
Aluminum
|
FULL |
1" Super
|
44 OS |
| 4022-6 |
Aluminum
|
FULL |
1" Super
|
47 OS |
| 4028-6 |
Aluminum
|
FULL |
1" Super
|
50 OS |
| 4012-8 |
Aluminum
|
FULL |
1" Super
|
43 OS |
| 4018-8 |
Aluminum
|
FULL |
1" Super
|
46 OS |
| 4022-8 |
Aluminum
|
FULL |
1" Super
|
49 OS |
| 4028-8 |
Aluminum
|
FULL |
1" Super
|
52 OS |
| 5022-6 |
Aluminum
|
FULL |
1" Super
|
58 OS |
ELECTRIC HOSE REELS PRICES
FOR
12 VOLT ELECTRIC REWIND HOSE REELS
 |
5500E
Series : Stainless
Steel
This
full frame stainless steel hose reel has 1/2" NPT inlet and
outlet, and includes type 304 stainless steel disks, frame,
fluid manifold, pin-lock, crank,
tie-rods, and hardware. Swivel is bearing supported nickel
plated steel. Spool is heavy duty PVC. Bearing holder, handle,
and drag (for tensioning) are molded resin.

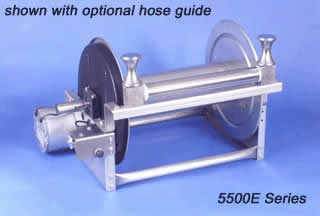

5500E
This unit shown in picture has 12 volt
Electric Rewind
Shown
with Optioal Hose Guide
SEE
EXPLODED VIEW OF GUIDE BELOW |
| MODEL
|
FRAME
|
FRAME
|
SWIVEL
|
WEIGHT
|
| NUMBER
|
MAT'L
|
TYPE
|
INCLUDED
|
LBS.
|
| 4312E |
Aluminum
|
ELECTRIC
|
1/2"
Super |
60 |
| 4318E |
Aluminum
|
ELECTRIC
|
1/2"
Super |
63 |
| 4322E |
Aluminum
|
ELECTRIC
|
1/2"
Super |
65 |
| 4328E |
Aluminum
|
ELECTRIC
|
1/2"
Super |
67 |
| 5512E |
SS |
ELECTRIC
|
1/2"
Super |
62 |
| 5518E |
SS |
ELECTRIC
|
1/2"
Super |
64 |
| 5522E |
SS |
ELECTRIC
|
1/2"
Super |
66 |
| 5528E |
SS |
ELECTRIC
|
1/2"
Super |
68 |
| 4012-6E |
Aluminum
|
ELECTRIC
|
1" Super
|
68 |
| 4018-6E |
Aluminum
|
ELECTRIC
|
1" Super
|
71 |
| 4022-6E |
Aluminum
|
ELECTRIC
|
1" Super
|
73 |
| 4028-6E |
Aluminum
|
ELECTRIC
|
1" Super
|
75 |
| 4012-8E |
Aluminum
|
ELECTRIC
|
1" Super
|
70 |
| 4018-8E |
Aluminum
|
ELECTRIC
|
1" Super
|
73 |
| 4022-8E |
Aluminum
|
ELECTRIC
|
1" Super
|
75 |
| 4028-8E |
Aluminum
|
ELECTRIC
|
1" Super
|
77 |
| 5022-6E |
SS |
ELECTRIC
|
1" Super
|
85 |
 |

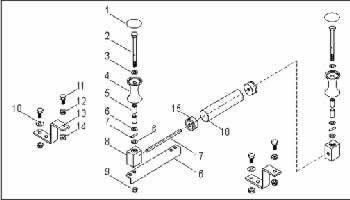

Exploded
view of parts used in the optional hose guide shown in the
above left photo. This guide allows the hose to be rewound
from either the right or left sides without binding.
SHOWN
ABOVE ON MODEL 5500E |
Hose
Reel Sizing Chart for Titan Hose Reels
CALL
FOR PRICING
|
|
